LED ILLUMINATION

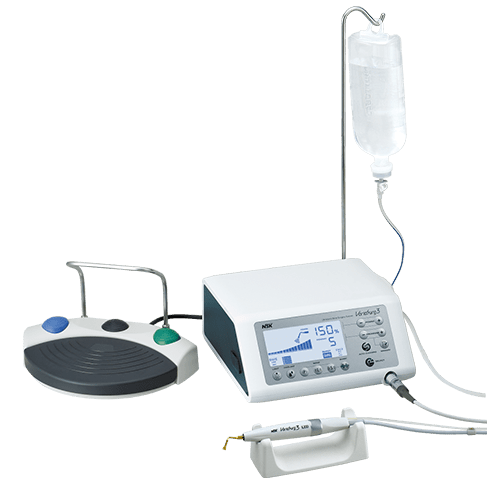

Multi Function Piezo Electric Unit for Minimally Invasive Surgery
Sinus lifts, extractions and bone grafting are all too simple for this powerful and intuitive machine.
– Minimal invasive surgery. Eliminates heat and reduces bleeding during operation
– Ergonomics and visibility. Optic handpiece is lightweight and slimline
– Safe. Soft tissue damage is minimal even during accidental contact
– Accuracy and precision. Minimal blood during cavitation ensures a clearer surgical site

Technology & Function

BURST Mode
You can switch modes instantly from Surg Mode to Burst Mode even during the procedure. Burst Mode creates a hammer drill effect capable of cutting through even the hardest tissues. Select any of three types of Burst Mode according to the procedure and the condition of the bone.

Foot Control
The VarioSurg3 foot control conforms with the IPX8 standard for medical foot control systems. All functions are clearly marked and allow accurate and hands-free operation of the unit within the pre-set parameters. Using the metal bar the foot control can easily be re-positioned at any time.

LED
Switch effortlessly between three levels of light intensity to suit the procedure.

Tip
We maximize the sharpness of our tips through three-dimensional cutting (toothing) of the blade’s edge.

Specifications

• Frequency 28-32 kHz
• Power Supply AC120 V or 230 V 50/60 Hz
• Irrigation Flow Rate 10-75 mL / min
• Programs SURG x 5, ENDO x 2, PERIO x 2
• Dimensions W 265 x D 220 x H 100 mm

Contents

Control Unit LED Handpiece with 2m / Cord FC-78 Foot Control / Sterilisation Cassette / Handpiece Stand / Irrigation Tube (5 pcs) and Other Accessories / Basic H-S Kit (H-SG1, SG3, SG5, SG6D, SG7D, SG11 and Tip Holder)
