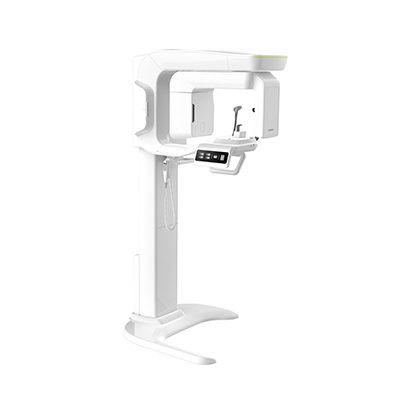

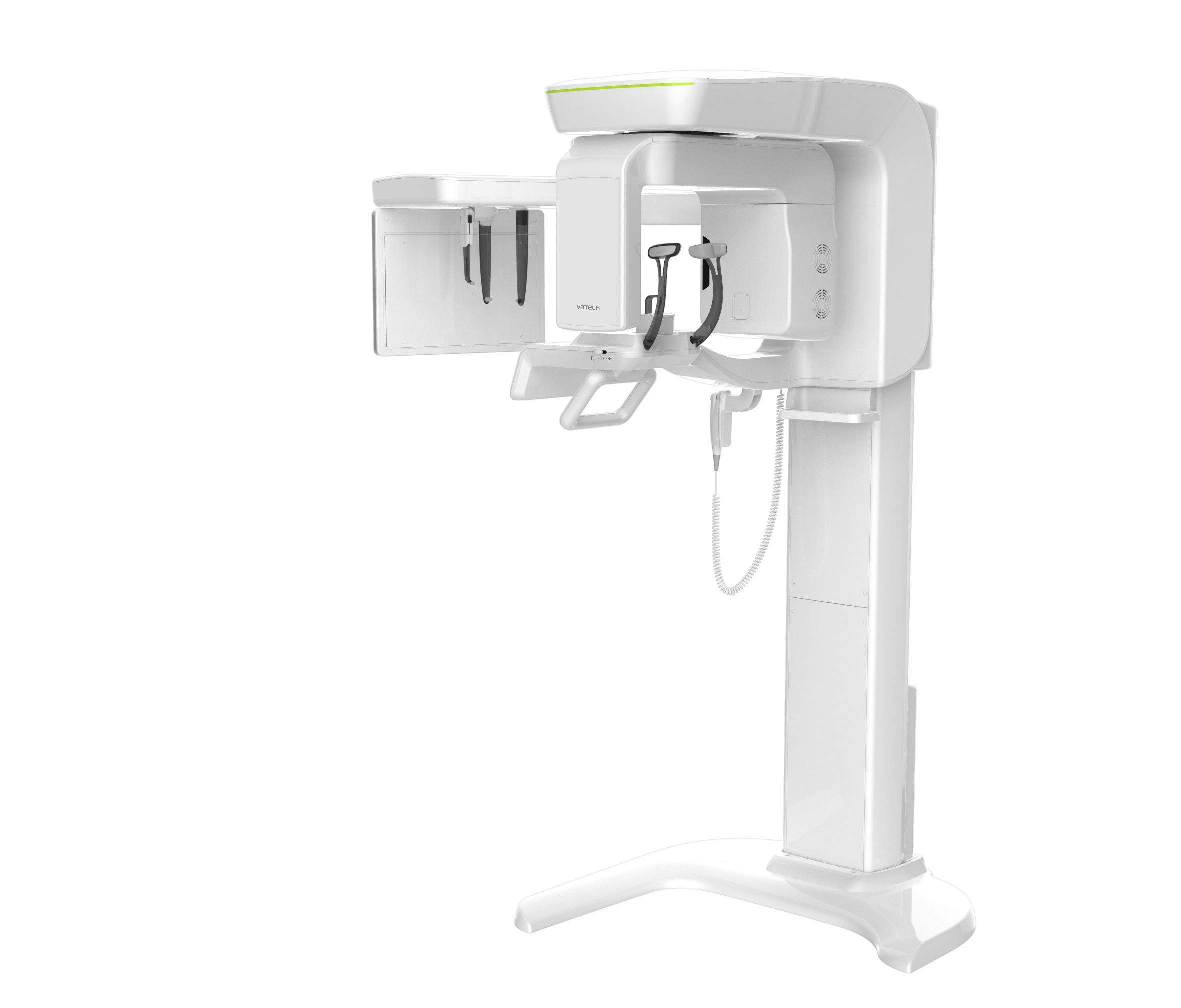

Vatech 3D Smart Plus

Vatech 3D Smart Plus

Vatech 3D Smart Plus

The innovative FOV of Smart Plus provides an arch-shaped volume

The innovative FOV of Smart Plus provides an arch-shaped volume, which shows a wider view of dentition compared to other devices with the same FOV.

Add to wishlist
Add to Quote List
Categories: , , , Tags: , , , , , , ,
0000

Smart Plus

The innovative FOV of Smart Plus provides an arch-shaped volume, which shows a wider view of dentition compared to other devices with the same FOV.

Practical 3 in 1 System
  • CBCT(with Auto Pano), Panoramic, Cephalometric
SMART Innovation for Accurate Diagnosis
  • Anatomical FOV 12×9
  • ART-V
SMART Innovation for Low Dose
  • 1 Scan, 2 Images
  • Low Dose and High Image Quality
3D Scanning for Model
  • CAD/CAM integration
  • Specially designed jig



ANATOMICAL FOV, 12X9

The innovative FOV of the Smart Plus provides an arch-shaped volume, which shows a wider view of dentition compared to other devices of the same FOV. Normally, a FOV 10×8.5 image shows tooth #8. However, when the tooth is lying on its side, there is a high possibility that the tooth will be cut out of the image. The “arch-shaped volume” eliminates this possibility and shows the hidden dentition area.

ART-V (ARTIFACT REDUCTION TECHNOLOGY OF VATECH)

ART-V finds out the location of metals when radiation is exposed. And it deletes the metal in projection data artificially and fills that part with the similar values to surrounding area. At the same time, it remembers the original location and status of metals and then it inpaints the area with new value which has no streaks.

SAME WORDS, BUT DIFFERENT MEANING

Metal artifact hinders visualization and naturally reduces diagnostic confidence

This picture is for illustration purposes only.



PROFESSIONAL DIAGNOSTIC VALUE WITH PANORAMIC IMAGES

Smart Plus Provides the most precise and high quality panoramic image. Clear and sharp panoramic image brings you better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.

MAGIC PAN
NORMAL PAN
MAGIC PAN creates a more superb panorama image. It is acquired through the elimination of distorted and blurred images caused by improper patient positioning(Optional). Focused image is reorganized throughout the whole dental arch and the image quality can be increased. The image becomes clearer especially in the incisor and canine region, TMJ areas and root canal.

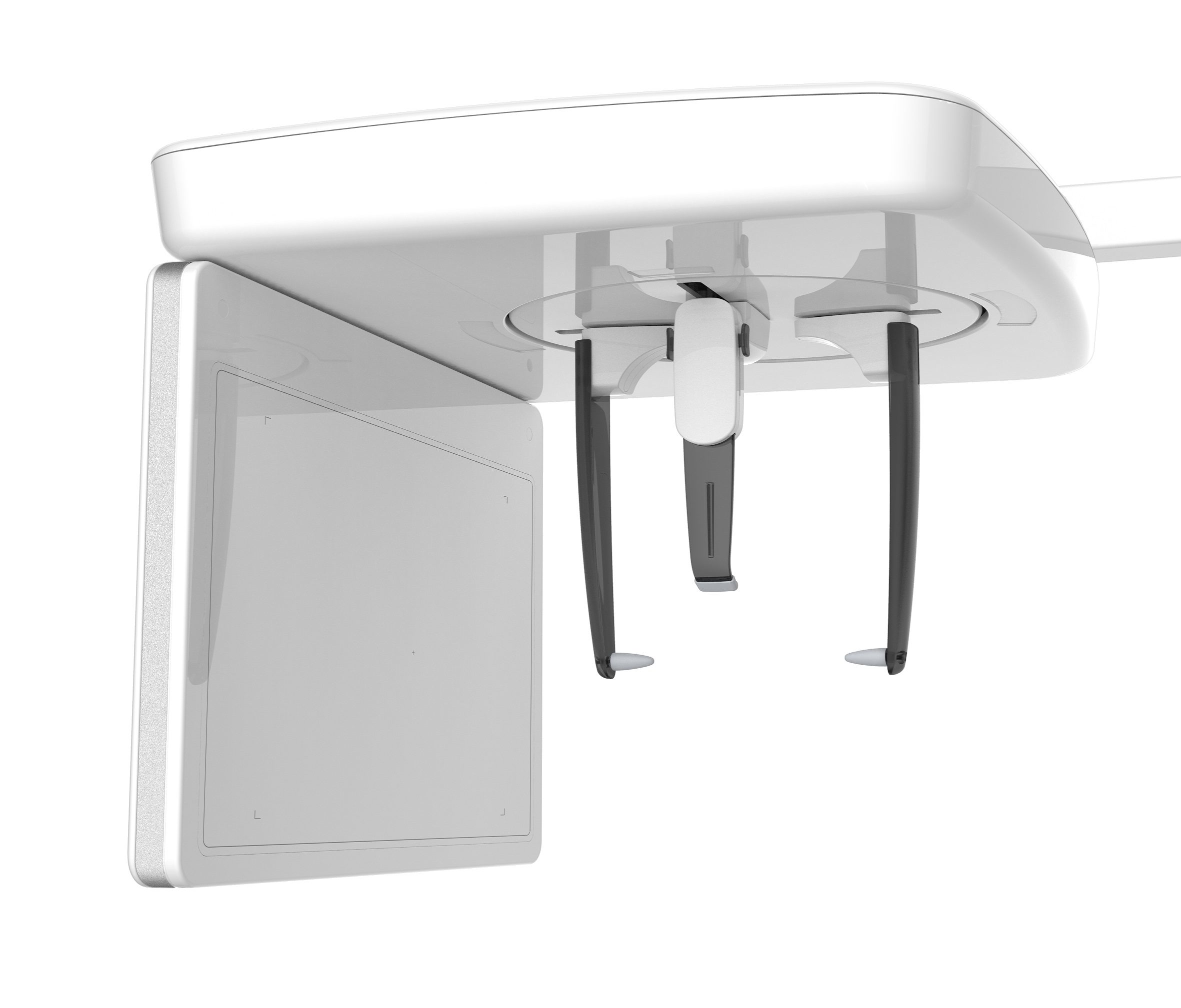

PROFESSIONAL DIAGNOSTIC VALUE WITH CEPHALOMETRIC IMAGES

Smart Plus provides optimal images with an exclusively designed sensor for cephalometric diagnosis.

SCAN TYPE CEPHALOMETRIC

Scan type cephalometric offers two image sizes, LAT and FULL LAT, you can choose one of them based on the purposes of your diagnostic needs.

LATERAL / FULL LATERAL

Provide specialized high quality images to suit Full lateral gives 30% larger images and the occipital orthodontics and maxillofacial surgeries’ area of the patient for comprehensive diagnosis. (optional)

SPECIFICATIONS (SMART PLUS : PHT-35LHS)

Funtion CT(with Auto Pano) + Pano + Ceph + Model Scan
Focal Spot 0.5mm(IEC 60336)
CT FOV Size 10×8.5(Anatomical 12×9) / 10×7 / 5×5
Voxel Size 0.08/0.12/0.2/0.3
Scan Time CT 18sec
Pano 14.1sec / 7sec(Option with Magic PAN)
Ceph 1.9sec / 3.9sec
Gray Scale 14 bit
Tube Voltage 60~99kV
Current 4~16mA
Weight Without Ceph unit 137kg(302.0 lbs)
With Ceph unit 162kg(357.1 lbs)

*The specifications are subject to change without prior notice.

DIMENSIONS

Without CEPH
With CEPH
 Column
