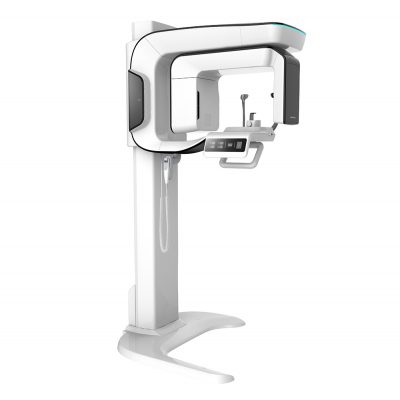

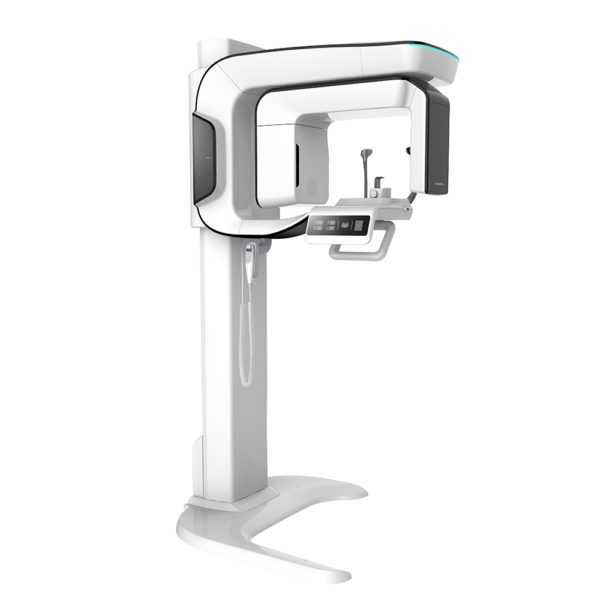

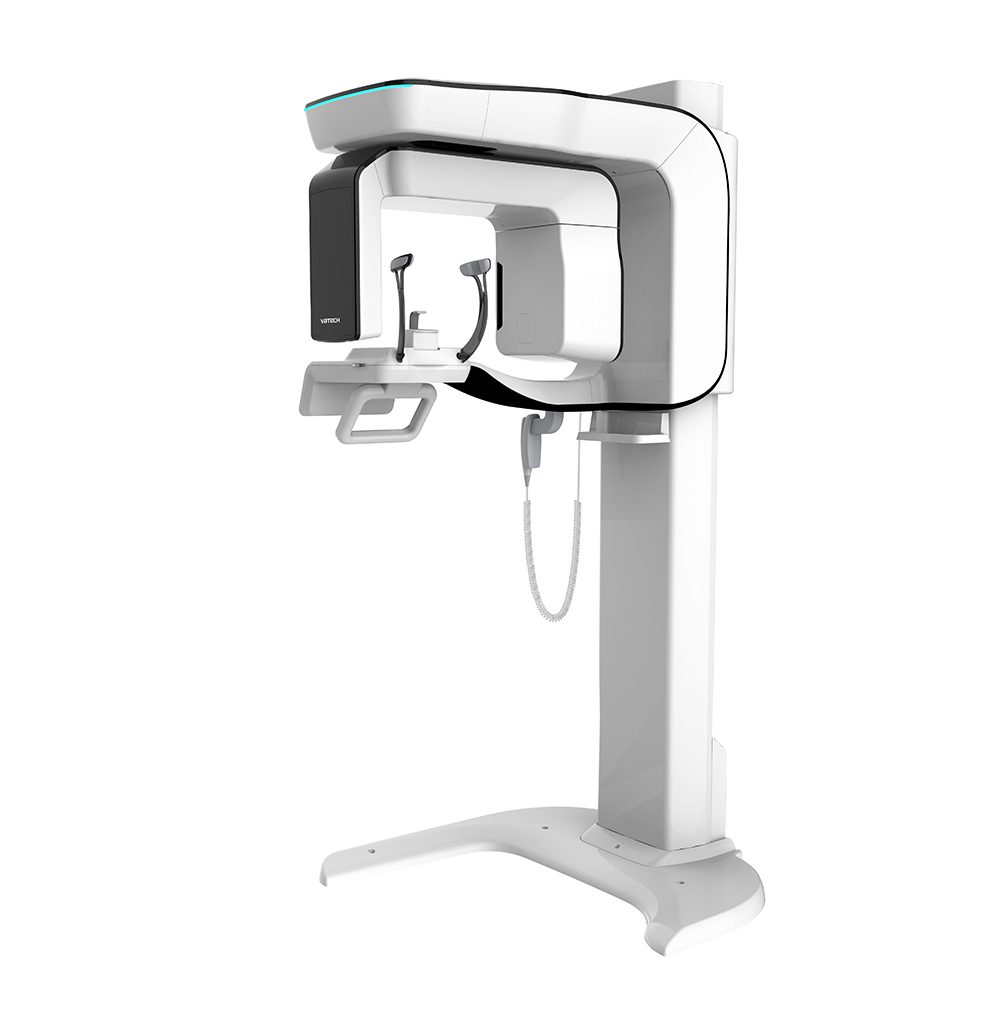

Vatech 3D PaX-i3D Smart
No More than what you want, No Less than what you need
1 SCAN, 2 IMAGES
One scan with the Smart gives you not just a CT image but also an Auto Pano image. This means, patients who require both images do not need to undergo two X-ray scans. Also CT and Auto Pano images are displayed within the One Viewer feature.
PaX-i3D SMART
1 SCAN, 2 IMAGES
One scan with the Smart gives you not just a CT image but also an Auto Pano image. This means, patients who require both images do not need to undergo two X-ray scans. Also CT and Auto Pano images are displayed within the One Viewer feature.
Practical 3 in 1 System
CBCT(with Auto Pano), Panoramic, Cephalometric
SMART Innovation for Low Dose
- 1 Scan, 2 Images
- Low Dose and High Image Quality
SMART Innovation for Accurate Diagnosis
- Anatomical FOV 12×9
- ART-V
ART-V Off
ART-V Off
ANATOMICAL FOV, 12X9
The innovative FOV of the PaX-i3D Smart provides an arch-shaped volume, which shows a wider view of dentition compared to other devices of the same FOV. Normally, a FOV 10×8.5 image shows tooth #8. However, when the tooth is lying on its side, there is a high possibility that the tooth will be cut out of the image. The “arch-shaped volume” eliminates this possibility and shows the hidden dentition area.
ART-V (ARTIFACT REDUCTION TECHNOLOGY OF VATECH)
The innovative FOV of the PaX-i3D Smart provides an arch-shaped volume, which shows a wider view of dentition campared to other devices of the same FOV. Normally, a FOV 10×8.5 image shows tooth #8. However, when the tooth is lying on its side, there is a high possibility that the tooth will be cut out of the image. The “arch-shaped volume” eliminates this possibility and shows the hidden dentition area.
SAME WORDS, BUT DIFFERENT MEANING
Metal artifact hinders visualization and naturally reduces diagnostic confidence
This picture is for illustration purposes only.
PROFESSIONAL DIAGNOSTIC VALUE WITH PANORAMIC IMAGES
Smart Plus Provides the most precise and high quality panoramic image. Clear and sharp panoramic image brings you better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.
MAGIC PAN
NORMAL PAN
PROFESSIONAL DIAGNOSTIC VALUE WITH CEPHALOMETRIC IMAGES
Smart Plus provides optimal images with an exclusively designed sensor for cephalometric diagnosis.
SCAN TYPE CEPHALOMETRIC
Scan type cephalometric offers two image sizes, LAT and FULL LAT, you can choose one of them based on the purposes of your diagnostic needs.
LATERAL FULL LATERAL
Provide specialized high quality images to suit Full lateral gives 30% larger images and the occipital orthodontics and maxillofacial surgeries’ area of the patient for comprehensive diagnosis (optional).
PA
Carpus
SMV (Submentovertex)
PRODUCT CONFIGURATION
| CBCT | PANO | CEPH | |
|---|---|---|---|
| PaX-i3D Smart | ● | ● | – |
| Pax-i3D Smart SC | ● | ● | ● |
SPECIFICATIONS (PAX-I3D SMART : PHT-30LFO)
| Function | CT(with Auto Pano) + Pano + Ceph | ||
|---|---|---|---|
| Focal Spot | 0.5mm | ||
| CT – FOV Size(cm) | 10X8.5(Anatomical 12X9 cm) : 5X5 / 10X7 / 10X8.5
8X8 : 8X8 |
||
| Voxel Size | 0.08mm / 0.2mm / 0.3mm | ||
| Scan Time | CT | 18sec | |
| Pano | 13.6sec / 7sec [Option with Mageic PAN] | ||
| Ceph | Scan : 12.9sec | ||
| Recon Time | CT | Max. 90 sec. (10X8.5 / 0.2 Voxel Basis) | |
| Pano | Less than 2 sec | ||
| Gray Scale | 14bit | ||
| Tube Voltage/Current | 50-99 kVp / 4 – 16 mA | ||
DIMENSIONS [UNIT : MM]
Pano / CBCT
Pano / CBCT / ScanCeph
Add a Review
Be the first to review “Vatech 3D PaX-i3D Smart”
-

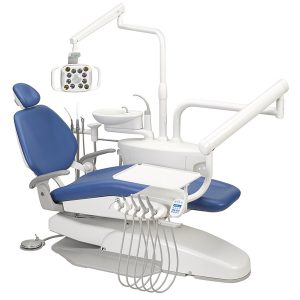

A-dec 400 Dental Chair
