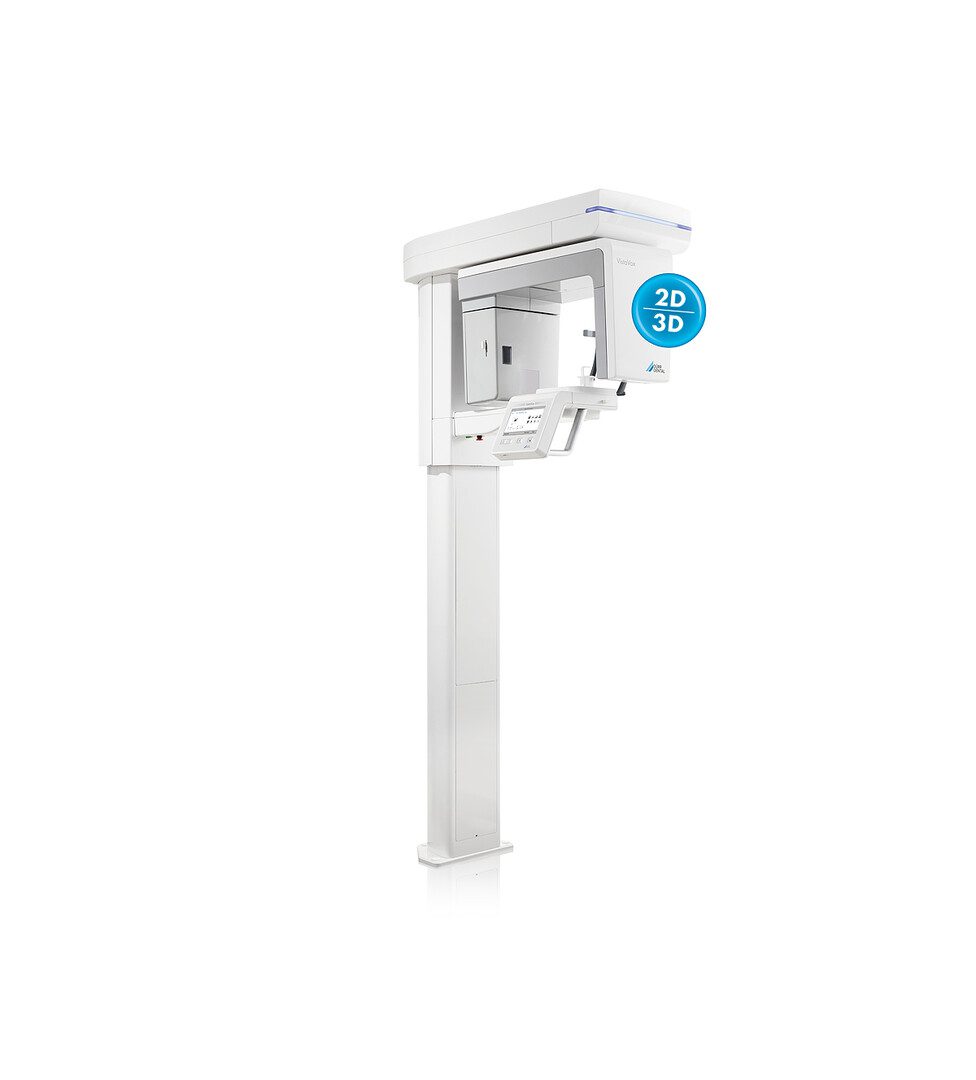

Durr VistaVox S

Image detector type	CsI CMOS Photodiode array
Pixel size (µm)	49,5
Scan times (s)	2 – 18
Active sensor surface area (mm)	135,8 x 36,4
Voltage (kV)	60 – 99
Tube current (mA)	4 – 16
Focal spot (mm)	0,5
Min. total filtration (mm)	2,8
3D volume, child, diagnostic (mm)	Ø 130 x 70
3D volume, adult, diagnostic (mm)	Ø 130 x 85
3D volume, jaw region (mm)	Ø 50 x 50
Height (mm)	1.406 – 2.250
Weight (kg)	180
Height adjustment range (mm)	844
Width x depth (mm)	990 x 1.130
Installation (wall-mounted)
Frequency (Hz)	50/60
Rated power (VA)	2.200
Mains voltage (V AC)	200 – 240

VistaVox S offers an ideal 3D volume that is adapted to the jaw arch

The special feature of VistaVox S is that its imaging volume is based on the human anatomy, representing precisely the area you need for diagnostics in the dental region.

Practice employee works on monitor with VistaVox S

VistaSoft 3D

VistaSoft 3D offers different views for your diagnosis of CBCT images: pano views, transversal layer images (TSA) and multiplanar reconstruction (MPR). Naturally, the VistaVox system includes VistaSoft as an unlimited network licence and a floating licence for three 3D workstations.

S-Pan technology: extremely sharp images for even more reliable diagnostics

With S-Pan technology, the image regions that best correspond to the actual patient anatomy are automatically selected from a large number of parallel layers. The result is an image of impressive clarity, in which you will be able to immediately and effortlessly locate all anatomically relevant structures. Since the reconstruction is aligned to the actual position of the bite, incorrect positioning is compensated for to a certain extent. This saves time for the surgery and prevents the patient from having to have repeat images taken.

Automatic selection of specific image areas with S-Pan technology

3D metal artefact reduction (MAR)

Metal artefacts are a real challenge for 3D imaging. In the three-dimensional reconstruction, radiopaque objects generate shadows (areas that are displayed completely white) and streaks. Particularly on patients with metal prosthetics, these artefacts make diagnostic work much more difficult. VistaVox MAR eliminates these metal artefacts automatically with the aid of state-of-the-art algorithms and is able to present anatomical structures much better as a result.

Comfort Bite: The basis for sharp images

With the Comfort Bite, VistaVox S offers an even more stable fixation of the patient, which additionally reduces movement during the exposure.

Thanks to its wider and softer support, it enables more comfortable positioning and is also ideal for edentulous patients.

2D/3D hybrid X-ray system: see what you want to see

VistaVox S is a real milestone in the development of 2D and 3D X-ray imaging. The unique technology produces images including everything you need for reliable diagnoses, indications, well-founded treatment decisions and convincing patient communication. State-of-the-art X-ray diagnostics for your dental practice.

THIS IS WHAT MATTERS

Ideal FoV – Ideal 3D imaging volume matched to the jaw arch (Ø 130 x 85 mm)

Exceptional image quality – In 2D and 3D thanks to the high-resolution CsI sensor with a pixel size of 49.5 μm

Ergonomic and intuitive – Modern, ergonomic VistaSoftimage processing software

Fast – Time-saving cephalometric projections from 1.9 seconds at a low dose

ARTIFICIAL INTELLIGENCE

VistaSoft AI included

With the VistaSoft package you will gain access to powerful AI features that will make your day-to-day work noticeably more effective. In combination with VistaScan IQ image plates, Vistasoft AI enables automatic checking of every X-ray image to detect deterioration in image quality over time – the software will recommend replacement of the image plate where necessary, so that consistently high image quality is ensured.

3D IMAGES WITH EXCEPTIONAL IMAGE QUALITY

GO DIGITAL

DÜRR DENTAL imaging software

The DÜRR DENTAL imaging software has been used in dental surgeries around the world for more than 20 years and is now available in 20 languages. The imaging software offers the highest levels of ease of use, compatibility and efficiency. All digital DÜRR DENTAL diagnostics systems are controlled with the DÜRR DENTAL imaging software. At the same time, you are supported by the integrated diagnostic tools.

Reviews(0)

There are no reviews yet.

VistaVox S: taking 3D diagnostics to the next level

VistaVox S combines diagnostic reliability with efficiency and lower radiation exposure

Download Brochure
