Durr VistaScan Mini View 2.0

Durr VistaScan Mini View 2.0

Durr VistaScan Mini View 2.0

Plug into the future – ready for the dental practices of tomorrow

Not just the design of the new VistaScan Mini View 2.0 is futuristic. The technology behind it is just as pioneering. The image plate scanner uses the state-of-the-art VistaScan image plates IQ to support the latest generation of AI functions. In conjunction with the VistaScan Smart Reader, workflows are easily automated. Together with superior image quality, it makes your dental practice sustainably ready for the future.

Download Brochure

Add to wishlist
Add to Quote List
Categories: , , ,
0000

TECHNICAL DATA

VISTASCAN MINI VIEW 2.0
Display 5″ Color-Touch
Plate sizes S0, S1, S2, S3, S4
Theoretical resolution (LP/mm, dpi) 40 (2.000)
Effective resolution (LP/mm, dpi) 22 (1.100 )
Greyscale (bit) 16 (65.536)
Weight (kg) 5
Dimensions (H x W x D mm) 273 x 211 x 258
Standby function ✓
Interfaces LAN, WLAN

More colors, more possibilities, more efficiency

Quick and easy scanning

With the Easy Feed concept you can scan image plates very quickly, one after the other. The interchangeable inserts make it possible to digitise all intraoral image plate formats.

ScanManager – for efficient working

Scanning tasks can be sent simultaneously from different workstations to VistaScan Mini View 2.0. Select the required task on the display, carry out the scan and perform a diagnosis on the PC screen straight away.

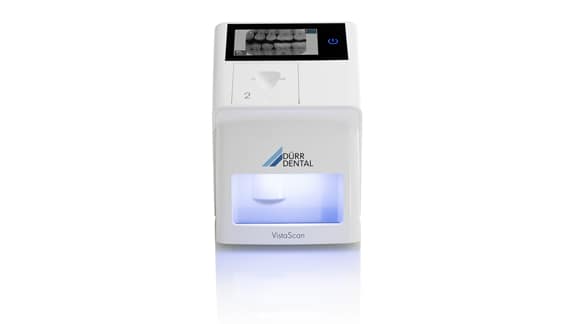

Scanning without a PC is possible

Thanks to the standalone mode, you can also work independently of the network. Images are stored temporarily in the internal memory of the device and then transmitted to the database later on.

All intraoral formats

VistaScan Mini View 2.0 can be used to digitise all intraoral image formats – from size 0 to 4.



Ambient Light

The LED lighting of the VistaScan Mini View 2.0 will add a nice touch of colour to your practice. You can freely choose a colour that best suits the look and feel of your interior design.

Large glass touchscreen display

The colour 5″ touchscreen display provides a user interface that is very easy to use.

Exceptional image quality thanks to PCS

VistaScan Mini View 2.0 can reliably highlight incipient caries lesions and make tiniest bony structures visible.

WLAN capability

The integrated WLAN functionality and the LAN interface make it incredibly easy to integrate the scanner in a network.

VistaScan IQ image plates

The high-performance VistaScan Mini View 2.0 unit is an image plate scanner that has been designed to meet the highest demands in terms of image quality, ease of use and performance. The best possible performance is only achieved in conjunction with VistaScan IQ image plates. This combination brings together both the tried-and-tested technology and exceptional image quality of the PCS technology with a number of new features that offer noticeable improvements in terms of ease of use, efficiency and reliability.

Sustainable right from the start

All our image plate scanners are manufactured with sustainability in mind and CO² neutral. Other divisions of DÜRR DENTAL are also committed to using resources in the most responsible way possible. With all of our products, it is important for us that we continue to improve energy efficiency and maximise service life by making all our units easy to repair and service. And, of course, last but not least everything is packaged in a safe and eco-friendly way.

Icons zur Nachhaltigkeit des Produktes VistaScan Mini View 2.0

AMBIENT LIGHT

Add a nice touch of colour to your dental practice

Smarter workflows with SmartScan – automation to make your work more relaxed

1. Assign the image plate

The VistaScan Smart Reader can be used to assign image plates to a patient in VistaSoft. This puts VistaScan Mini View 2.0 in “ready for image acquisition” mode.

2. Scan the image plate

Now scan image plates from different patients in any any sequence, one after the other.

3. Assess the X-ray image

VistaSoft automatically assigns the X-ray images to the correct patients.

THIS IS WHAT MATTERS

Without compromise – Highest image quality and high-resolution 5-inch glass touchscreen display
Flexible – For all intraoral formats
Efficient – SmartScan workflow and Easy Feed concept
Intelligent – More efficient thanks to artificial intelligence

VistaSoft AI automation included

Automatic image rotation

VistaSoft uses an algorithm based on artificial intelligence to check the orientation of intraoral X-ray images on the basis of anatomical features shown and corrects the rotation of the image automatically if needed. This will save you valuable time.

Automatic checking of image plate quality

In conjunction with VistaScan IQ image plates, Vistasoft AI performs an automated check of image plate quality on every intraoral image. This ensures that excellent image quality is preserved in the long term.



Flip side exposure detection

VistaSoft AI automatically detects if the wrong side of the image plate has been exposed, and issues a corresponding warning for the user.

VistaSoft 3D

The package comes with a full 2D and 3D X-ray licence for VistaSoft, which allows you to view and diagnose 2D and 3D image data even without your own dedicated CBCT device.

VistaSoft AI inclusive

With the VistaSoft package you will gain access to powerful AI features that will not only make your day-to-day work in the practice noticeably more effective, but will also significantly increase the reliability of diagnostic work ahead of complicated procedures.
