When only the purest air will do

Cattani’s range of CAD/CAM compressors, deliver the highest quality air, specifically to meet the demands set by CAD/CAM manufacturers.

Power

Purpose built to maintain a constant and sustainable operating pressure of 8 bar over long CAM cycles to ensure optimal mill performance.

Air quality

Cattani CAD/CAM compressors sit comfortably within ISO standards with a 99.97% efficiency rating for particles greater than 0.3 microns, and so preventing damage to your valuable equipment and precious work.

Performance

Our compressors run and run. They’re easy to install and low maintenance, and our CAD/CAM compressors are particularly robust. And nothing says reliability like an industry-leading 7-year warranty.

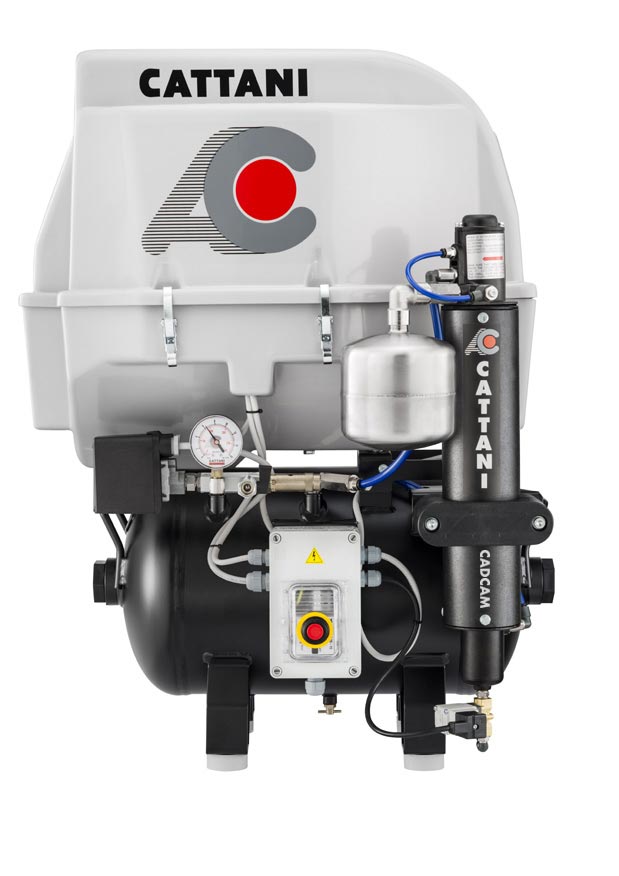

AC310Q WITH DRYERS – TECHNICAL DATA

ITEM CODE K-AC310Q
NO. OF CYLINDERS 3
NO. OF DRYERS 1
POWER 1˜ 230V 50Hz 1.5kW 10.2A
HEIGHT MM 970
WIDTH MM 710
DEPTH MM 700
WEIGHT KG 80
SOUND OUTPUT dB(A) 68
MAX AIR FLOW AT 8 BAR NL/min 165
TANK SIZE (LITRES) 45
